Description

SPECIFICATIONS

Brand Name: BLUSUNSOLAR

Model Number: SOLAR CONNECTOR

Certification: CE

Certification: UL

Rated Voltage: TUV1000V DC/UL 600V DC

Rated current: 20A~30A

Suitable cable cross sections: 2.5mm sq~~6.0mm sq

Pin dimension: 4.0mm

Proof voltage: TUV 6000AC (1MIN)

Pollution degree: 2

Protection class: class II

Contact material: Copper,tin plated

Housing material: PPO

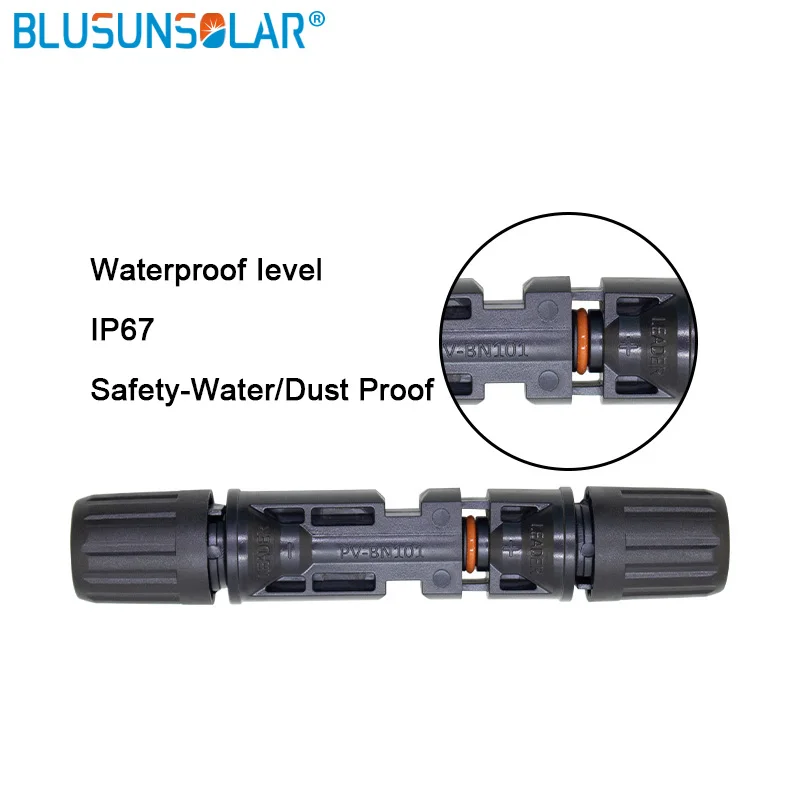

Waterproof: IP67

Product Details:

Insulation material PPO Rated Voltage TUV 1000 DC/ UL 600V DC Rated Current 20A-30A Test voltage 6KV(50Hz,1Min) Contact material copper, tin plated Contact resistance less than 0.5 m ohm Degree of protection IP67 Pin dimension 4.0 MM Compatible Solar cable 2.5/4.0 /6.0 mm⊃2; (14/12/10 AWG Compatible Branch Connector:

1. Cable Standard:2.5/4.0/6.0mm sq(14/12/10AWG)

2. TUV certification.

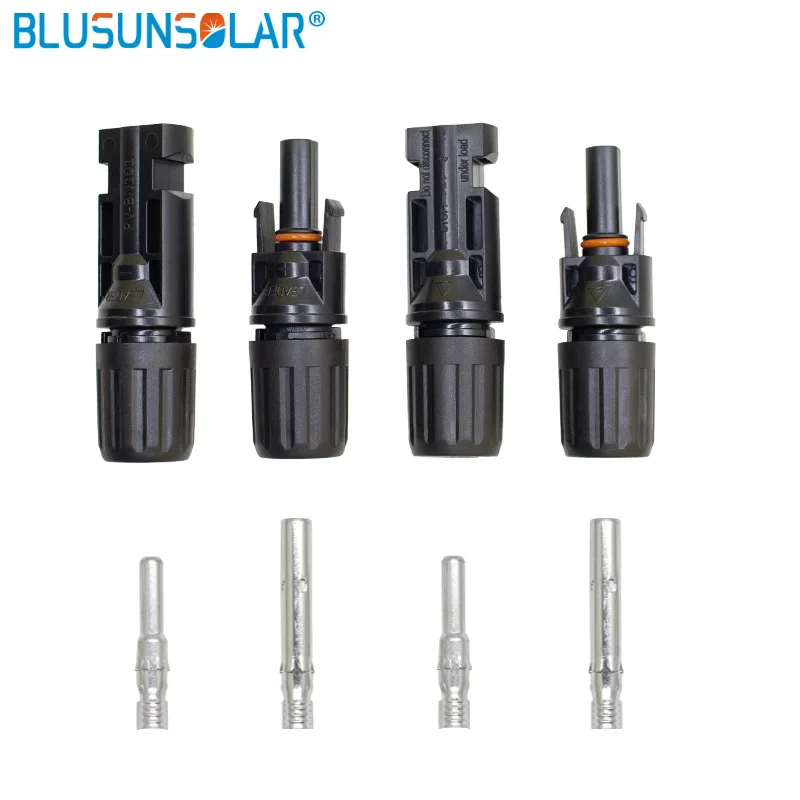

3.1 Pairs =1 Pcs Male Connector+1 Pcs Female Connector

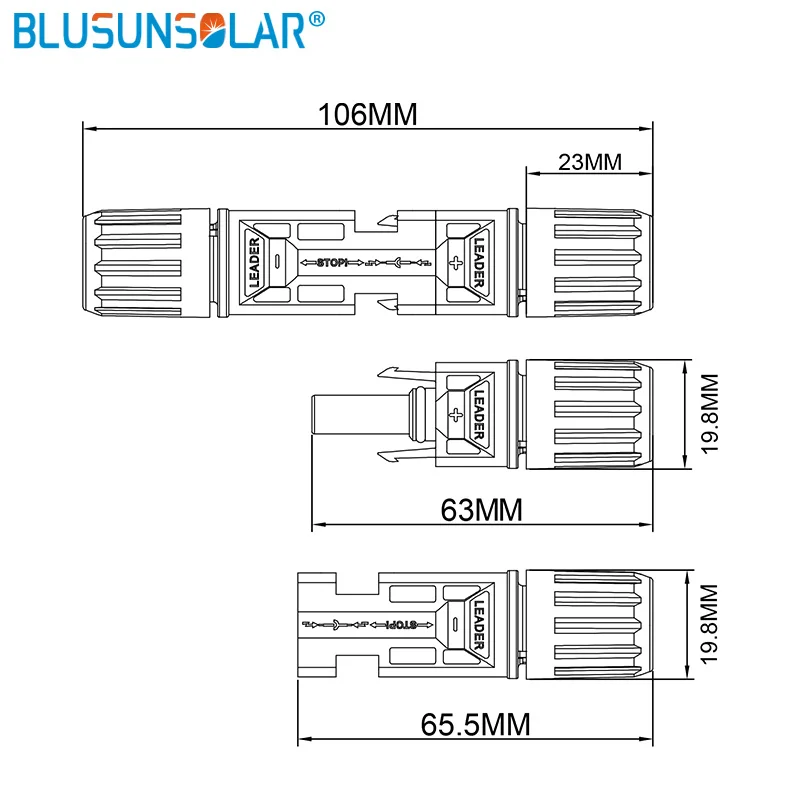

SOLAR Branch Connector Drawing :

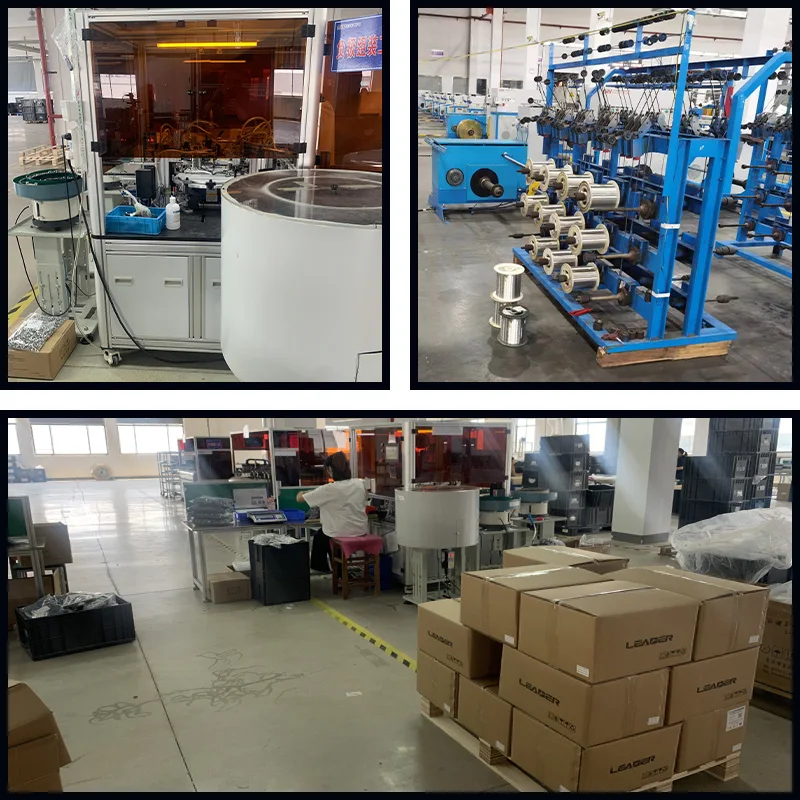

Factory Picture



For more information please leave message to us, we will reply you soon, thank you!
